Lifting Magnets and Grapples
DIMET GmbH is one of the leading lifting magnets manufacturers and customized lifting solutions providers for the steel and scrap processing industry, with headquarters in Germany and a sales network worldwide.
DIMET products are working globally in the most complex environments, proving their high reliability and performance.
Knowiq is the authorized Indian representative for DIMET lifting magnets & orange peel grapples.
DIMET GmbH

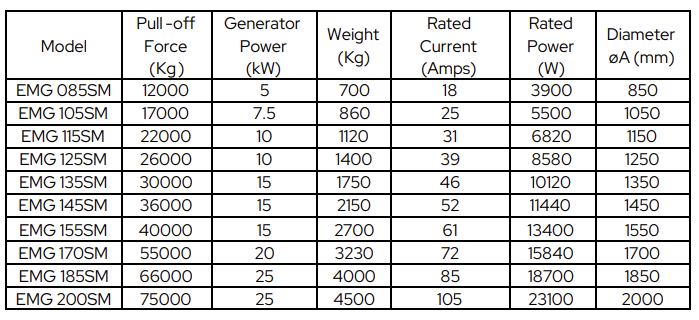

Circular Type electromagnets for scrap metal handling
DIMET EMG SM series electromagnets are designed for handling metal scrap, chips, and gray cast iron bars. This series is intended to be used on virtually all mobile scrap handling machines. The electromagnets are also available in a heat-resistant version to handle hot loads (up to 650˚C).
Your Benefits of using DIMET Electromagnets
- Productivity Increased due to the efficient design of Electromagnet.
- Long Service Life of Electromagnet due to specially designed case and coil.
- Energy Saving Due to cutting-edge energy-efficient construction of Electromagnet.
- Compatible with all modern equipment through a universal attachment and connection system.

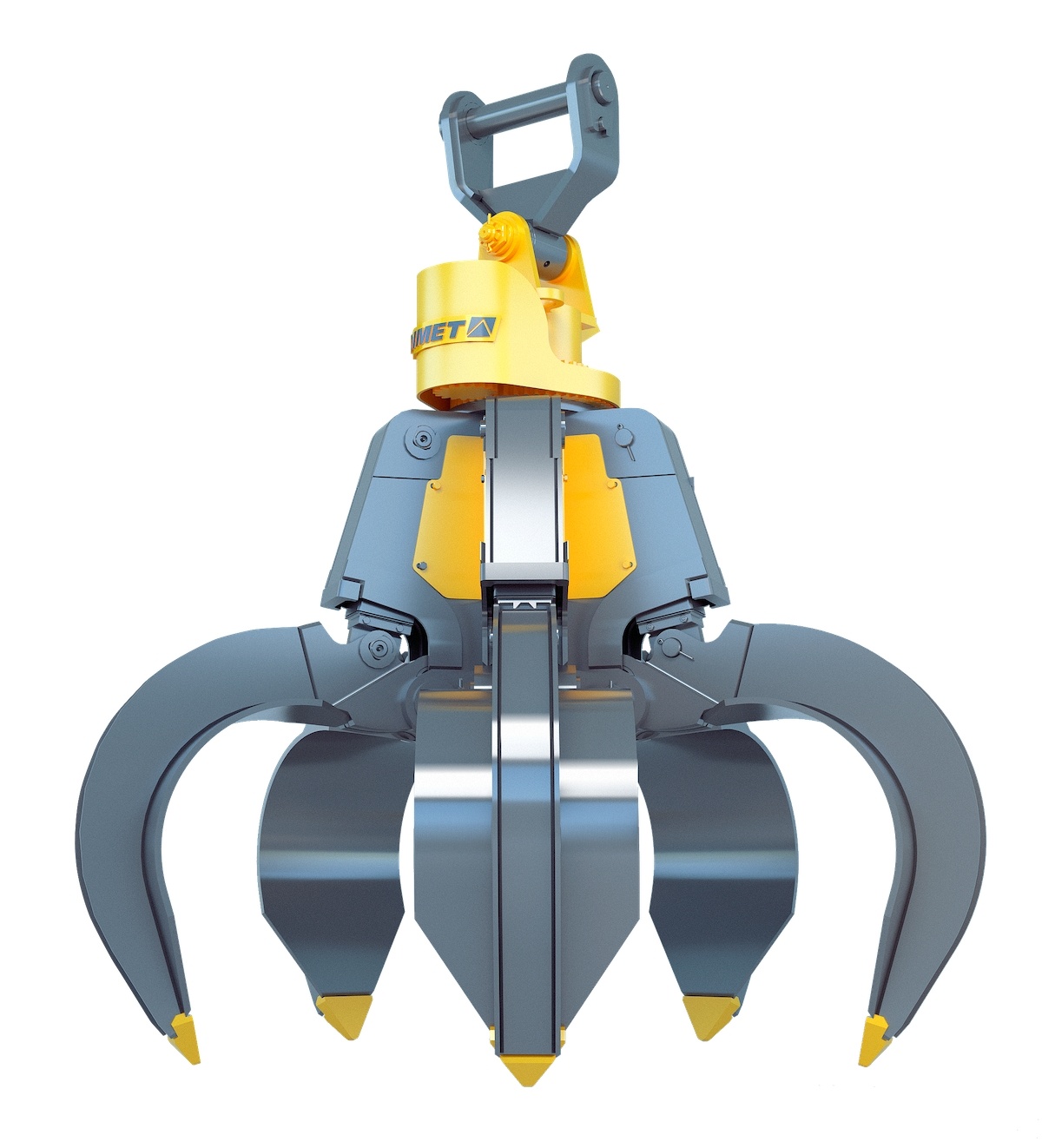

Orange Peel Grapple

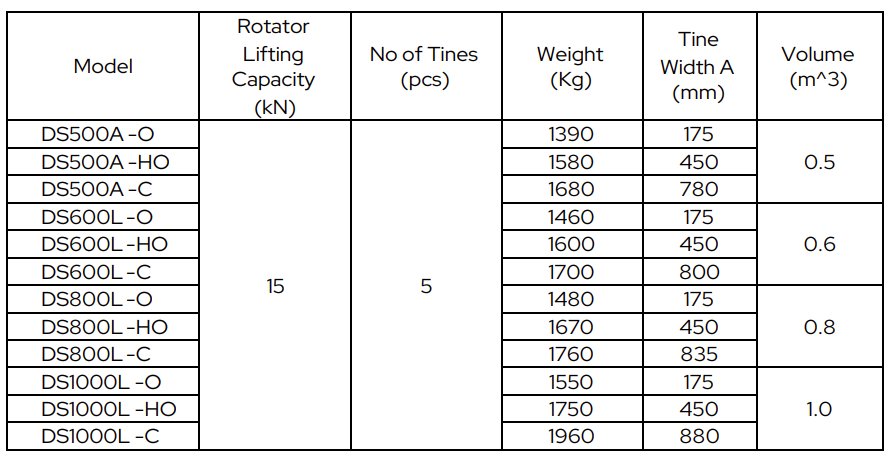

DIMET DS grapples are devices with 4 & 5 tines. A double-acting hydraulic cylinder drives each tine. All the cylinders are connected to a single hydraulic circuit that coordinates the opening & closing of the tines. All the tines operate with the same clamping force during the closing, although each can stop in a different position.
Product Features
- Capacity up to 1000 litres
- Weight up to 1750 kg
- Lifting capacity up to 12000 kg
- Permissible load on the support assembly 15000 kg
- System operating pressure up to 300 bar
Compatibility
- Hydraulic crane trucks
- Hydraulic manipulators
- Hydraulic fixed cranes
- Hydraulic Excavators
- Wheel Loaders
Your benefits
- Convenient and easy to use
- Easily repaired
- Longer-lived due to improved quality
